Single Swing 70 mm/ 90 mins/ 40 dB Soundproof Steel Insulate Fire Door
Contact Person : lan
Phone Number : 176 3354 0888
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Inside Bubble Bags with Outside Wooden Frame | Delivery Time : | 35 Days After Payment Received |
| Payment Terms : | western union, moneygram,cash, l/c, t/t | Supply Ability : | 600 Sets Per Day |
| Place of Origin: | CHINA | Brand Name: | ZHONGWO |
|---|---|---|---|
| Certification: | BS， WHI， UL, CCC | Model Number: | ZW-GM05 |
|
Detail Information |
|||
| Product Name: | Single Swing Gal. Steel 1 Hour Rated Steel Insulated Fire Exterior Doors With Panic Bar | Surface Treatment: | Powder Coating |
|---|---|---|---|
| Thickness Of Steel Plate For Door Leaf: | 0.8mm | Thickness Of Steel Plate For Door Frame: | 1.2mm |
| Thickness Of Door Leaf: | 45mm | Material: | Galvanized Steel |
| Open Style: | Swing | Color: | Cold Gray, Dark Gray, Milky White, Beige, Matte Orange Or As Request |
| Size: | Customized | Frame Depth: | 112 Mm |
| Highlight: | fire door insulation,fire rated interior doors |
||
Product Description

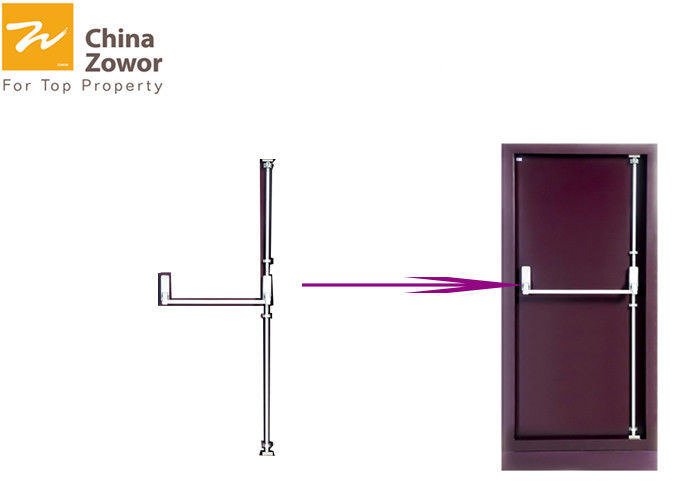

Single Swing Gal. Steel 1 Hour Rated Steel Insulated Fire Exterior Doors With Panic Bar
Steel Insulated Fire Door
Product Description
We concern not only about your safety, but also try our best to avoid you secondary damage caused by fire.
Zhongwo 60 min unequal leaf steel insulated fire doors all passed the 60min fire test according to GB12955:2008, in other words, we can provide you all certificates or fire test report you want. As far as the key materials and components are concerned, we adopt 0.8 mm thick galvanized steel instead of cold rolled galvanized steel which may cause pollution as fire door skin. And the thickness of steel sheet for door frame reaches 1.2 mm. Infilling materials are all environment-friendly fireproof perlite board with density of 300±30kg/m3 which will never release irritant or even poisonous smoke in fighting against fire.
Specification
| Product Name | 60 min Unequal Leaf Steel Insulated Fire Door |
| Certificate | CCC, ISO9001:2008 |
| Thickness of Door Leaf | 45 mm |
| Frame Depth | 112 mm |
| Open Style | Swing Open, Left Handed, Right Handed |
| Infilling Material | 43 mm Fireproof Perlite Board(300±30kg/m3) |
| Surface Treatment | Powder Coating; Heat Transfer Printing; Copper Drawing Process |
| Color |
Heat Transfer Printing:1. Rosewood, 2.Oak Wood,3.Walnut Wood or as Request Powder Coating: Milky White, Matte Orange, Dark Gray, Cold Gray White or as Request |
| Glass | Class A Fully Insulated Fireproof Glass; Maximum Size: 200X 900 mm |
| Gap Covering Board | W17mm X T2.4 mm |
| Fireproof Seal Strip | FPJ-A-15X 2 |
| Hardware | Top Brand Chinese of International Fire Door Closer, Fire Hinges, Fire Bolt etc. |
| Application | Corridor, Passageway, Equipment Room, Stairwell in School, Hotel, Hospital or Restaurant |
| Package | Inside Bubble Bags with Outside Wooden Frame |
| Delivery Time | 35Days After Payment Received |
Product Advantage
| Item | Rosewood Heat Transfer Printing Steel Fire Door |
| Eco-friendly& Healthy Infilling Material | All of our fireproof perlite board must reach level A1 of the combustion performance standard according to GB8624-2006 and level ZA2 of toxicity standard according to GB/T20285-2006. |
| Little Smoke Leakage | We invent a kind of gap covering board to cover the lap joint between two leaves so as to reduce the smoke leakage to utmost extent. |
| Beautiful Appearance | The surface treatment of powder coating makes the different colors choices possible, thus increase the ability to match almost any kind of decor. |
| Small Door Leaf Opening Force | Door leaf opening force of our rosewood steel fire door is no more than 69N, which is much smaller than 80N according to GB12955-2008. |
| Long Service Life | Powder coating process increases highly anti-corrosion and anti-damp performance of fire doors, thus longer service life. |
| Customized Products | Nearly all of our steel fire doors can be customized as your request. |
Why Choose Us?
1. All of our fire doors are in top quality and at competitive prices.
2. Free pre-sales consult on any questions about fire doors.
3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.
4. All fire doors can be customized as your request.
5. Good after-sale service.
6. More than 20 years experience in fire door industry.
