Commercial 60 Minutes Metal Steel Emergency Exit Doors Single Swing
Contact Person : lan
Phone Number : 176 3354 0888
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Inside Bubble Bags+ Strong Carton+Wooden Frame | Delivery Time : | 35 Days After Payment Received |
| Payment Terms : | western union, moneygram,cash, l/c, t/t | Supply Ability : | 600 Sets per Day |
| Place of Origin: | CHINA | Brand Name: | ZHONGWO |
|---|---|---|---|
| Certification: | BS， WHI， UL, CCC | Model Number: | ZW-MM01 |
|
Detail Information |
|||
| Material: | Galvanized Steel | Infilling: | 38 Mm Fireproof Perlite Board |
|---|---|---|---|
| Color: | Walnut, Oak, Rosewood Or As Request | Thickness Of Steel Sheet For Door Frame: | 1.2 Mm |
| Thickness Of Steel Sheet For Door Leaf: | 0.8 Mm | Frame Depth: | 90 Mm |
| Highest Temperature Rise: | 63.9 ℃ | Opening Force: | 50 N |
| Opening Degree: | 90-120 Degrees | Size: | Customized Size |
| Highlight: | 30 minute fire door,half hour fire door |
||
Product Description

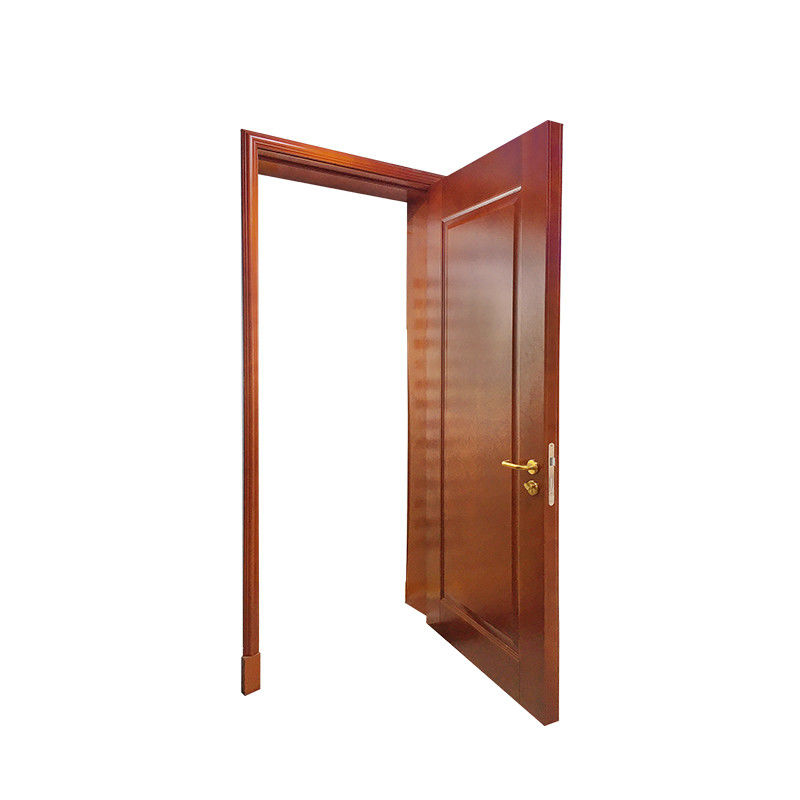

Walnut Wood Grain Finish Left Hand FD30 Fire Door / 40 mm Half Hour Fire Door
Steel FD30 Fire Door
All of Zhongwo FD30 steel fire doors are class A fire doors and are certified according to BS476-22:1987. We can provide you with relevant testing report and certificates in order to verify the door’s fire integrity and insulation.Thickness of the galvanized steel sheet for the fd30 fire door frame starts from 1.2 mm via 1.5 mm to 1.8 mm, or even 2.0 mm. Inside there is also fireproof perlite board as infilling material and the frame depth reaches at least 90 mm. We can also manufacture FD30 fire door frames in a range of finishes according to your requirements. Also we will make you suggestions on finishes choice for different applications.Door leaf is filled with 38 mm thick fireproof perlite board with density of 300±30 kg/m3. And the door leaf panel is covered on both sides with 0.8 mm thick galvanized steel sheet. Finishes of the panel can be powder coating, heat transfer printing, ready for painting and others as request. Besides, every door of us can be made to your specific requirement for sizes, colors, applications etc.
Features
Beautiful Appearance: We introduce the process of heat transfer printing instead of traditional painting process to ensure the decorative and environment-friendly performance of our steel fire doors.
Small Door Leaf Opening Force: Door leaf opening force of our rosewood steel fire door is no more than 50N, which is much smaller than 80N according to BS476-22:1987.
High Performance of Fire Integrity & Insulation: In fire testing the average temperature rise of our FD30 Fire Doors reaches only 63.9℃(Standard: 140℃) on the surface of door leaf, the highest point 69.3℃(Standard: 180℃); and on the door frame the highest temperature rise is also only 80.6℃(Standard: 360℃).
Perfect Process: The demensional deviation between theoretic design and practical production is 0 mm.
Customized Products: All of our steel fire doors can be customized as your request.
| Product Name | FD30 Fire Door |
| Fire Rating | 30 min |
| Weight | 20-25Kg/m2 |
| Material of Door Leaf | Galvanized Steel Sheet |
| Material of Door Frame | Galvanized Steel Sheet |
| Thickness of Steel Sheet of Door Leaf | ≧0.8 mm |
| Thickness of Steel Sheet of Door Frame | ≧1.2 mm |
| Thickness of Door Leaf | 40 mm |
| Frame Depth | 90 mm |
| Opening Degree | 90°-120° |
| Open Style | Swing Open, Left Handed, Right Handed |
| Infilling Material | 30min: 38 mm Fireproof Perlite Board(300±30kg/m3) |
| Surface Treatment |
Powder Coating; Heat Transfer Printing |
| Color |
Heat Transfer Printing:1. Rosewood, 2.Oak Wood,3.Walnut Wood or as Request Powder Coating: Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request |
| Fireproof Seal Strip | FPJ-A-15X 2 |
| Package | Inside Bubble Bags + Strong Carton + Wooden Frame |
| Delivery Time | 35 Days After Payment Received |
Packaging&Delivery
1. Matured packaging team consisting of professional and well-trained packaging staff with quality packaging materials.
2. Quick delivery within 35 days since transfer confirmed.
3. Reliable and professional logistics services which are all in long-term cooperation with us.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Why Choose Us?
1. All of our fire doors are in top quality and at competitive prices.
2. Free pre-sales consult on any questions about fire doors.
3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.
4. All fire doors can be customized as your request.
5. Good after-sale service.
