Double Leaf 45 mm Thick FD60 Steel Fire Door For Access Corridor/ 1.0 mm Steel Sheet
Contact Person : lan
Phone Number : 176 3354 0888
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Inside Bubble Bags+ Strong Carton | Delivery Time : | 35 Days After Payment Received |
| Payment Terms : | western union, moneygram,cash, l/c, t/t | Supply Ability : | 600 Sets per Day |
| Place of Origin: | CHINA | Brand Name: | ZHONGWO |
|---|---|---|---|
| Certification: | BS， WHI， UL, CCC | Model Number: | ZW-GM05(T) |
|
Detail Information |
|||
| Fire Rating: | 30/60/90/120 Min | Thickness Of Door Leaf: | 40/45/55mm |
|---|---|---|---|
| Thickness Of Door Frame (mm): | 90/112/120 Mm | Thickness Of Steel Sheet For Door Leaf: | 0.8-1.6 Mm |
| Thickness Of Steel Sheet For Door Frame: | 1.0-2.0 Mm | Size: | Customized |
| Color: | Customized | Weight: | 20-28 Kg/m2 |
| Infilling: | Fireproof Perlite Board; Honeycomb Paper | MOQ: | 5 Sets |
| Highlight: | 60 minute fire door,fd60 external fire doors |
||
Product Description
BS Steel Fire Rated door1 Hour With Wired Glass/ RAL Color/ 45mm Thick
Gla. Steel FD60 Fire Doors

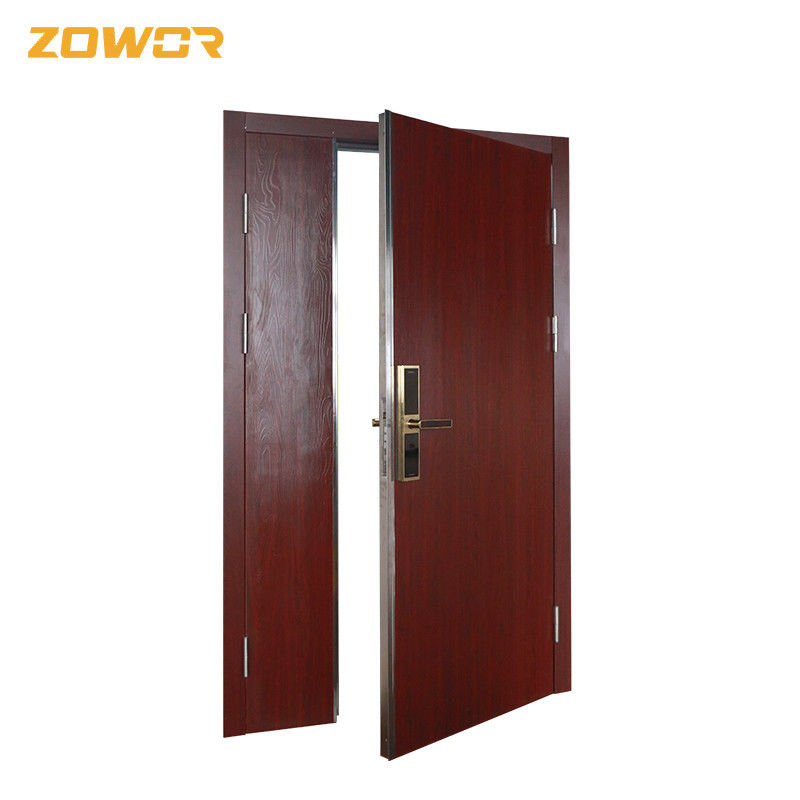

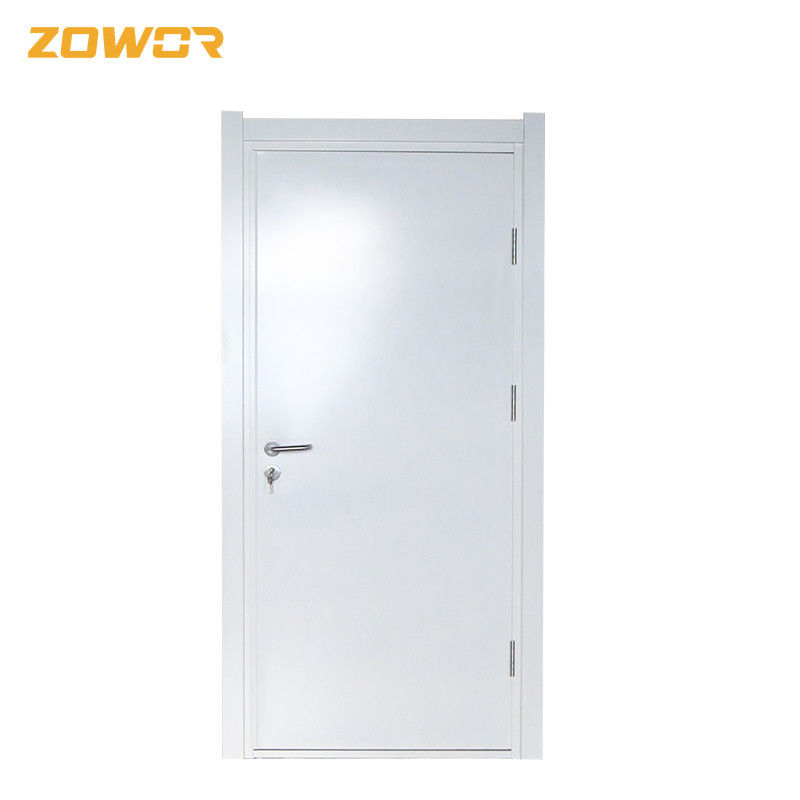

Zhongwo BS steel fire doors are divided into single swing fire doors and double swing fire doors and unequal leaf fire doors. We can provide both flush panel fire doors and fire doors with vision panels. According to different fire ratings and types they can be used in residential & commercial buildings, industrial facilities and many other places.
| Product Name | Zhongwo Fire Rated Steel Doors |
| Fire Rating | 20/30/60/90/120mins |
| Standard | BS476-22, EN1634-1:2008 |
| Material of Door Leaf | Galvanized Steel Sheet |
| Material of Door Frame | Galvanized Steel Sheet |
| Thickness of Steel Sheet of Door Leaf | 0.8mm |
| Thickness of Steel Sheet of Door Frame | 1.2mm |
| Thickness of Door Leaf | 55mm |
| Frame Depth | 105mm |
| Weight | 25-35Kg/㎡ |
| Size (Overall Frame Size) |
Single Door: W1200XH2400 mm Double Door: W2100XH2400 mm Or customized |
| Open Style | Swing Open |
| Infilling Material |
Fireproof Perlite Board Density: (350±35)Kg/m3 |
| Surface Treatment | Powder Coating |
| Warranty | 2 years |
| Package | PE Paper+Double Layer Strong Carton or wooden pallet |
| Delivery Time | 45Days After Payment Received |
Dimension
As far as the dimension is concerned, we mean the overall structural opening sizes here. So please confirm whether your order is only about door leaf sizes or about overall sizes of leaf & frame.
Single Swing:1200(W) X 2400(H)mm
Double swing:2100(W) X 2400(H)mm
Finish
Standard Surface Treatment: Powder Coating
Options: Prime Painting and Heat Transfer Printing.
Color of doors decides on color of plastic powders.
Most popular color of plastic powders by us are as following:
PBG1001(Pure White), B1068(Beige), PS2328(Gray White), PS2869-2(Dark Gray), PS6018-5(Frosted Orange), PS7046WT(High Light Gray)
Vision Panels
We manufacture also BS steel fire doors with vision panels. All of vision panels are made from heat insulated fireproof glass. As standard the size of vision panels by us is 203.2 X 608.6 X 32mm. To make sure the vision panel can be installed in the door leaf firmly, we add one steel skeleton specially around the vision holes which is made from 1.5mm thick gal. Steel sheet. As glass strip we use 0.8mm thick gal. Steel sheet.
Hardware & Accessories
| Hardware | Fire Lock |
Mortise Lock Type: ROCK6072N Lock Case Size:: 85 x 165 x 13 mm; Backset: 60 mm; Latch Throw: 10 mm; |
| Fire Hinges |
Steel Hinge Size: 4.5 X 4.0 X 3.0 mm Quantity: 3 for each leaf |
|
| Door Closer | Type: CA93-4CIII(Rock1800) | |
| Flush Bolt | YB054, 8” | |
| Fireproof Sealant | Model 1: FPJ-B-25X2mm | All around door edges. |
| Model 2: FPJ-B-20X2mm | Under the astragal on push side. | |
|
Adhesive
|
Fire proof adhesive, applied at a rate of 0.4 ± 10% kg/m2. Application: between steel face and perlite core on unexposed side. |
|
Standard Package:
Door Leaf: one layer perlite cotton + one or two layers strong carton + foam board around 4 edges.
Door Frame: Band them together with tapes, cover around them with perlite cotton, protect them inside foam boards and at last load them into strong cartons.
Options:
We also make wooden pallet for you to pack the doors and frames with more security. But this may mean more package fees than standard choice.
