| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Inside Bubble Bags+ Strong Carton+Wooden Frame | Delivery Time : | 35 Days After Payment Received |
| Payment Terms : | western union, moneygram,cash, l/c, t/t | Supply Ability : | 600 Sets per Day |
| Place of Origin: | CHINA | Brand Name: | ZHONGWO |
|---|---|---|---|
| Certification: | UL, CCC | Model Number: | ZW-GM02(B) |
|
Detail Information |
|||
| Material: | 201/304 Stainless Steel | Fire Rating: | 30/06/90 Mins |
|---|---|---|---|
| Thickness Of Door Leaf: | 40/45/55 Mm | Size: | Customized Size |
| Infilling: | Fireproof Perlite Board | Thickness Of Steel Sheet For Door Frame: | 1.2 Mm; 1.5 Mm |
| Thickness Of Steel Sheet For Door Leaf: | 0.8 Mm; 1.0 Mm | Opening Direction: | Outward |
| Hardware: | International & Chinese Brand | Highest Temperature Rise: | 83 ℃ |
| Highlight: | metal fire door,metal fire escape doors |
||
Product Description

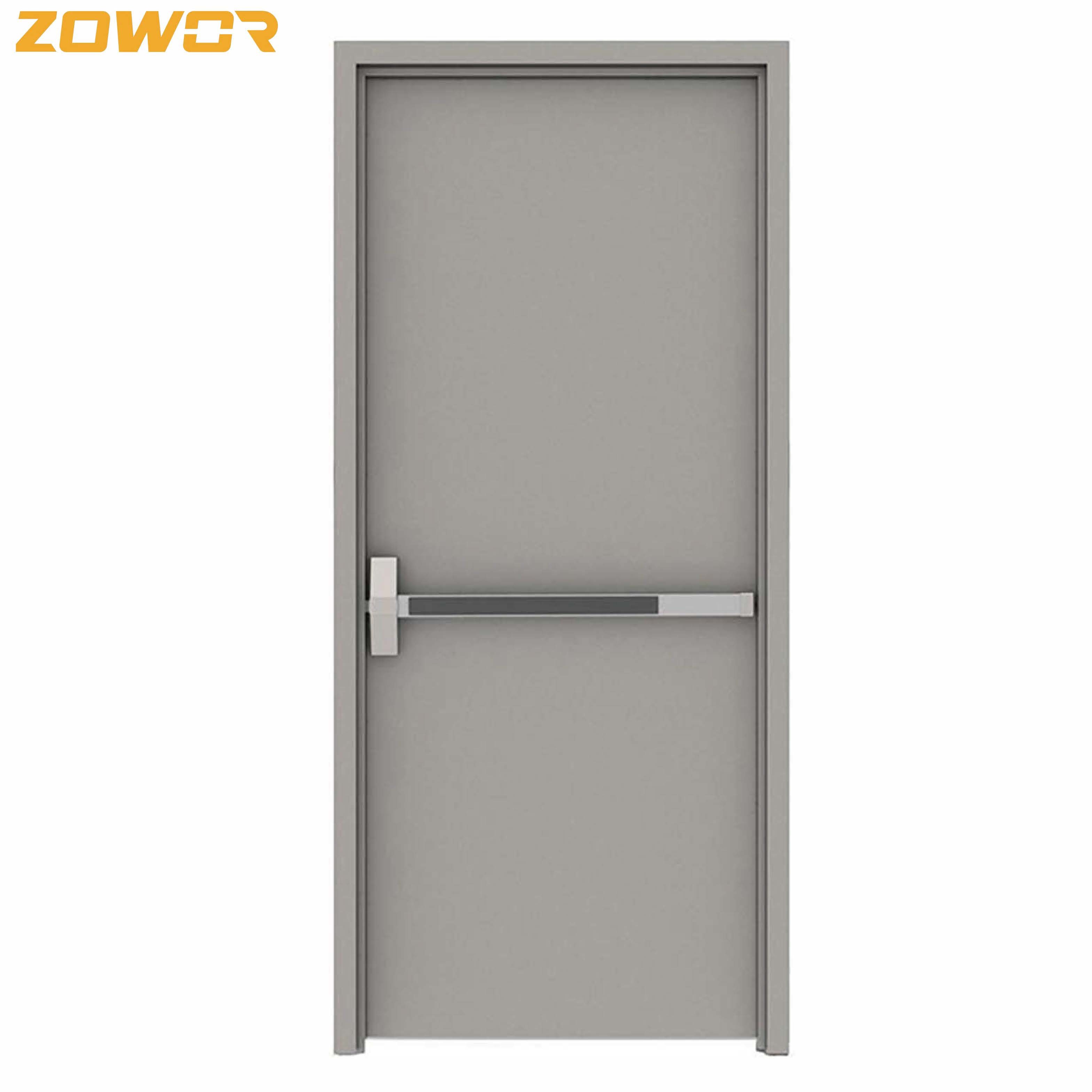

Flush Panel Stainless Steel Fire Rated Doors For Commercial Buildings/ 30/60/90 min Fire Rating
Commercial Stainless Steel Fire Rated Doors
Product Description
Material: The door frame adopts stainless steel plate not less than 1.2mm thick
The door fan adopts stainless steel plate not less than 0.8mm thick
Hardware accessories: choose famous high-grade fire locks, door closers, fire prevention hinges, order, bolt and other hardware accessories, has many characteristics, such as the use of flexible, safe and reliable, and are approved by the national inspection agency inspection, the performance meet GB12955-2008 appendix A, B, C, D
Applicable place: the stainless steel plate fire door is suitable for the high-level places such as mechanical and electrical room, nuclear power plant, and subway, airport, cinema, etc.
Features
Excellent heat insulation performance: Fire-resistant adhesive is non-combustible material, and it will gradually foam, expand to the condition of carbonation when heated , therefore it can reduce heat radiation and heat transfer effectively.
High Anti-Explosion Performance: It remains high yield strength and creep strength even at higher than 900℃,therefore it can effectively avoid explosion in case of fire.
Top Fire Insulation Performance: Average temperature rise of unexposed surface reaches 94.2℃, highest temperature rise at single point reaches 148.6℃, both are far away lower than the standard of not beyond 140℃ and 180℃. And the highest temperature point on door frame reaches 140.8℃, also much lower than the standard of not beyond 360℃.
Accessories
| Door Closer | 2 |
| Composite Insulated Fire Glass | 2 |
| Fire Lock | 1 |
| Fire Hinge | 6 |
| Fire Latch | 2 |
| Fire Intumescent Seals | 15*2 (W*T mm) |
| Perlite Fire Door Core Board | 1 (300±30)kg/m³ |
| Drawboard | 17*2.4(mm) made of 0.8mm Galvanized Steel Sheet bending, a part of door leaf panel. |
| Door Leaf Panel | 0.8mm Cold Galvanized Steel Sheet |
| Fire Sequencer | 1 |
| Class | A |
| Grade | A/B/C |
| Fire Resistance Rating | 0.5/1/1.5 Hours |
| Dimension | Standard: 2100*2300 (mm) or Customized |
| Standards | GB12955-2008 |
Specification
| Product Name | Flat Panel 201/304 Stainless Steel Fire Door |
| Fire Rating | 30 min/60 min/ 90min |
| Certificate | CCC, ISO9001:2008 |
| Material of Door Leaf | 201/304 Stainless Steel |
| Material of Door Frame | 201/304 Stainless Steel |
| Thickness of Steel Sheet of Door Leaf | 0.8 mm |
| Thickness of Steel Sheet of Door Frame | 1.2 mm |
| Thickness of Door Leaf |
90min: 55 mm 60min: 45 mm 30min:40 mm |
| Frame Depth |
90min: 120 mm 60min: 112 mm 30min: 90 mm |
| Size | Standard: W1000 X H2300(mm); 700X 2300(mm) or Customized |
| Open Style | Swing Open |
| Infilling Material |
90min: 53 mm Fireproof Perlite Board(400±40kg/m3) 60min: 43 mm Fireproof Perlite Board(300±30kg/m3) 30min: 38 mm Fireproof Perlite Board(300±30kg/m3) or Honeycomb Paper |
| Surface Treatment | Finished |
| Color | Silver |
| Fireproof Seal Strip |
90min: FPJ-B-20X 2 60min: FPJ-A-15X 2 30min: FPJ-A-15X 2 Or Customized |
| Warranty | 2 years |
| Package | Inside Bubble Bags+ Strong Carton+Wooden Frame |
| Delivery Time | 35 Days After Payment Received |
Why Choose Us?
1. All of our fire doors are in top quality and at competitive prices.
2. Free pre-sales consult on any questions about fire doors.
3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.
4. All fire doors can be customized as your request.
5. Good after-sale service.
6. More than 20 years experience in fire door industry.
