Commercial 60 Minutes Metal Steel Emergency Exit Doors Single Swing
Contact Person : lan
Phone Number : 176 3354 0888
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Inside Bubble Bags+ Strong Carton+Wooden Pallet | Delivery Time : | 45 Days After Payment Received |
| Payment Terms : | western union, moneygram,cash, l/c, t/t | Supply Ability : | 600 Sets per Day |
| Place of Origin: | CHINA | Brand Name: | ZHONGWO |
|---|---|---|---|
| Certification: | BS， WHI， UL, CCC | Model Number: | ZW-SM09 |
|
Detail Information |
|||
| Material: | Galvanized Steel | Fire Rating: | 30/45/60/90/150/180 Min |
|---|---|---|---|
| Finish: | Prime Paint, Powder Coating, Wood Grain | Thickness Of Door Leaf: | 40/45mm |
| Thickness Of Steel Sheet For Door Leaf: | 20-18-16 Ga. | Thickness Of Steel Sheet For Door Frame: | 18-16-14 Ga. |
| Infilling: | Perlite Board; Honeycomb Paper, Mineral Core | Glass: | UL Listed Fireproof Glass |
| Opening Force: | 66-68 N | Opening Type: | Swing Open |
| Highlight: | fire proof door,fire protection door |
||
Product Description

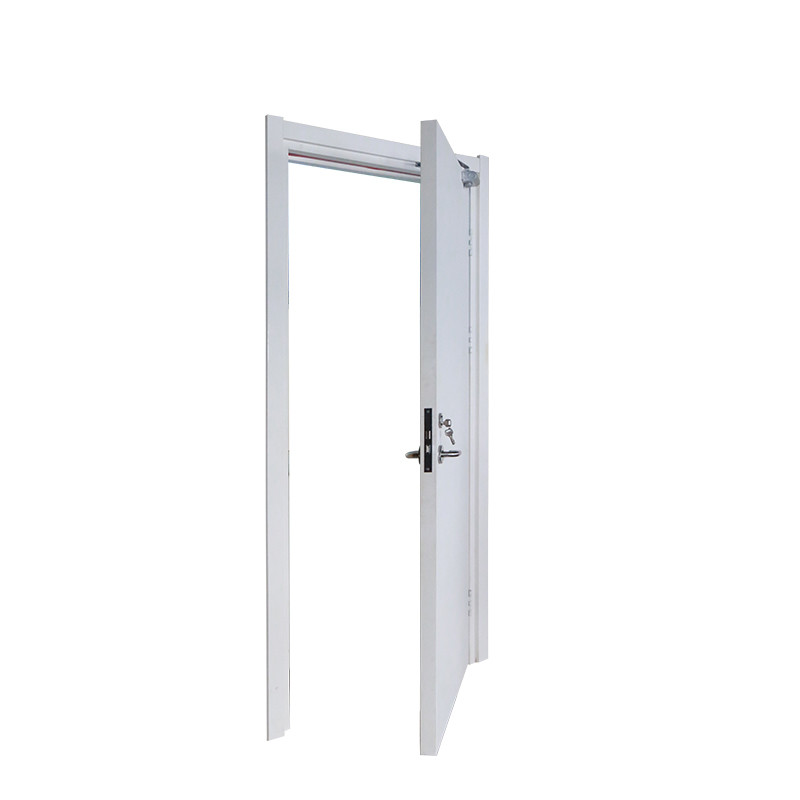

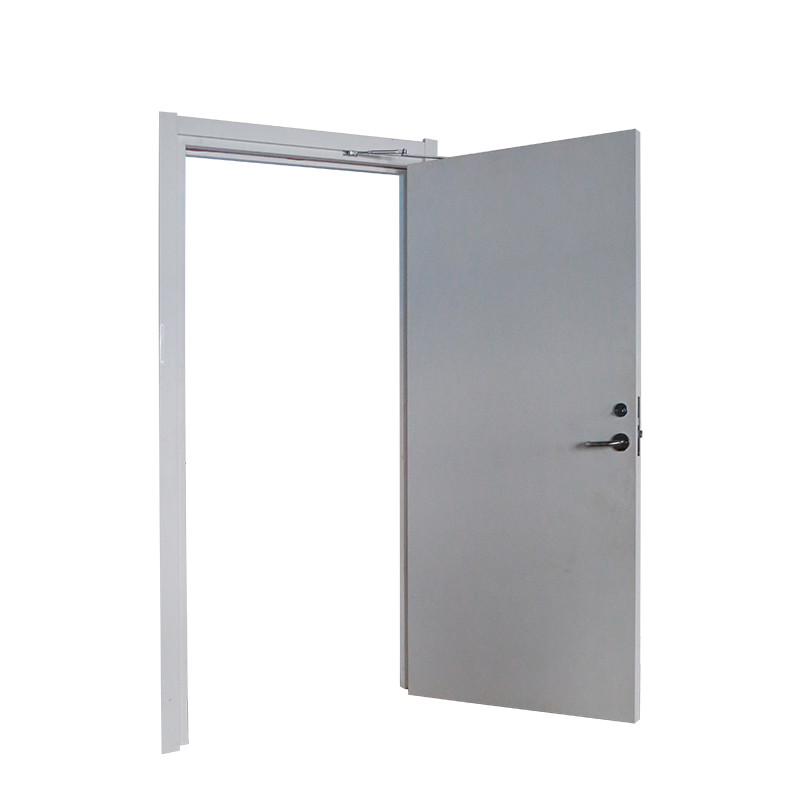

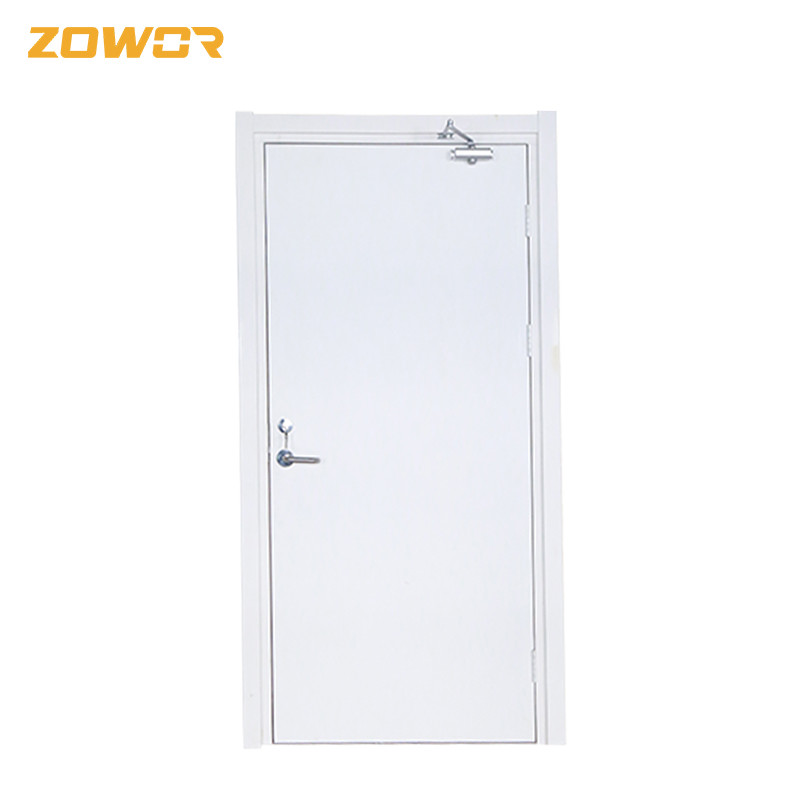

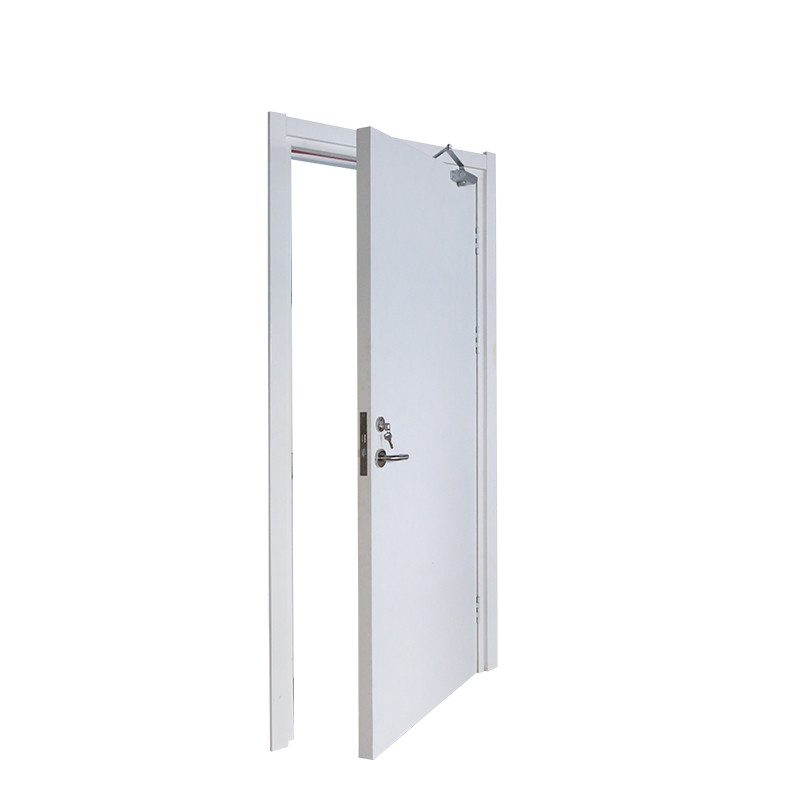

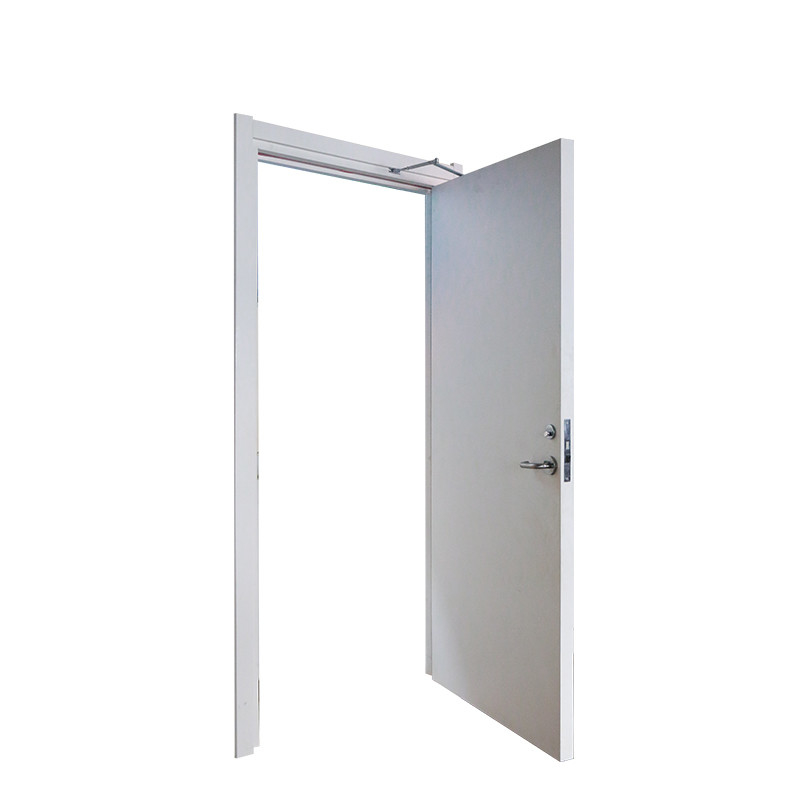

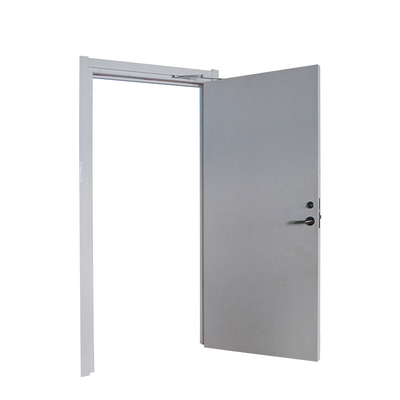

Frosted Red Color UL Listed Steel Fire Safety Door/ Galvanized Steel Material
Zhongwo UL Steel Fire Door
Zhongwo Fire Door has introduced most advanced manufacturing equipment and build one fully-automatic production line, with which it outputs one door within only 1 minute. Daily output will increase to 1000 sets.
Standard
NFPA252, CAN/ULC S104, UL10(b) and UL10(c)
Fire Rating
30mins, 45mins, 60mins, 90mins, 150mins, 180mins
Measurement
Structural Opening limit for single door is 1200 X 2400 mm; for pair door is 2100 X 2400 mm.
Certification size for single door limits no larger than 1080 X 2380 mm, for pair door smaller than 2080 X 2380 mm.
By fire exit doors the manufacturing height will be higher by 10 mm.
Type
Flat Plate Fire Door
Fire Door with Vision Panel
Single Fire Door
Double Swing Fire Door with One Active Leaf and One Inactive Leaf
Unequal Leaf Fire Door
Self Closing Fire Door
Propping Open Fire Door With Fire Linkage System
| Door | Material | 0.8 mm Gal. steel |
| Infill | Magnesium Oxide Board | |
| Sealant | Fire-Rated liquid sealant on both inside surfaces of face panel | |
| Framework | U-Type skeleton, 1.5 mm Gal. steel | |
| Reinforcement | 3 mm Gal. Steel sheet as hinge and strike reinforcement | |
| Weight | 30 Kg/m2 | |
| Astragal | 0.8 mm Gal. steel | |
| Frame | Material | 1.2 mm Gal. steel |
| Type | Knock-down Frame, Welded Frame | |
| Reinforcement | 3 mm Gal. Steel sheet as hinge and strike reinforcement | |
| Stiffener | 0.8 mm Gal. steel | |
| Frame Depth | 120 mm | |
| Finish | Most popular by us is plastic spraying, we also have prime painting, heat transfer printing and stainless steel for you choice. | |
Finish
Powder Coating
All our UL steel fire doors are factory finished and most popular finish is powder coating. Colors of this finish is according to RAL swatch or upon request of customers.
Wood Grain
Wood grain doors combine the beautiful appearance of timber together with the strength and rigidity of steel. By default we provide you with rosewood, walnut wood, oak wood as popular wood grain options.
Stainless Steel Finish
We can offer any door in stainless steel 304 grade.
Fireproof Glass:
Type: UL listed fire-rated Glass-Ceramic, Size 203.2 X 608.6 X 5 mm
Type: High Borosilicate Fire-rated Glass, Size: 203.2 X 608.6 X 6 mm
Glass Strip: 1.5 mm Gal. Steel
Ironmongery
All of our ironmongery are tested and certified in accordance with UL10(c) with unique UL number. They can be use on swinging type doors rated up to including 3 hours.
Installation
We ourselves have professional installation teams with experienced members. If you want, we can fly to your country to install the doors for you.
Package
Our fire door and frame are individually packed. We wrap firstly one layer perlite cotton around door and frame. Then we equip foam plates around 4 edges to protect them from striking during delivery. Thirdly we cover two foam sheets on perlite cotton between foam plates. At last we pack the doors and frames into strong carton.
Besides, we can also make wooden or steel pallet for you. Extra fees will be caculated then.
